This tip is a follow up to my post about asking How common is your birthday?. In this post, I created a heat map and Matt Stiles asked me if I could write a tutorial showing how I did it so quickly in Tableau.
The steps are for creating the viz only. I’m assuming you already connected to the data.

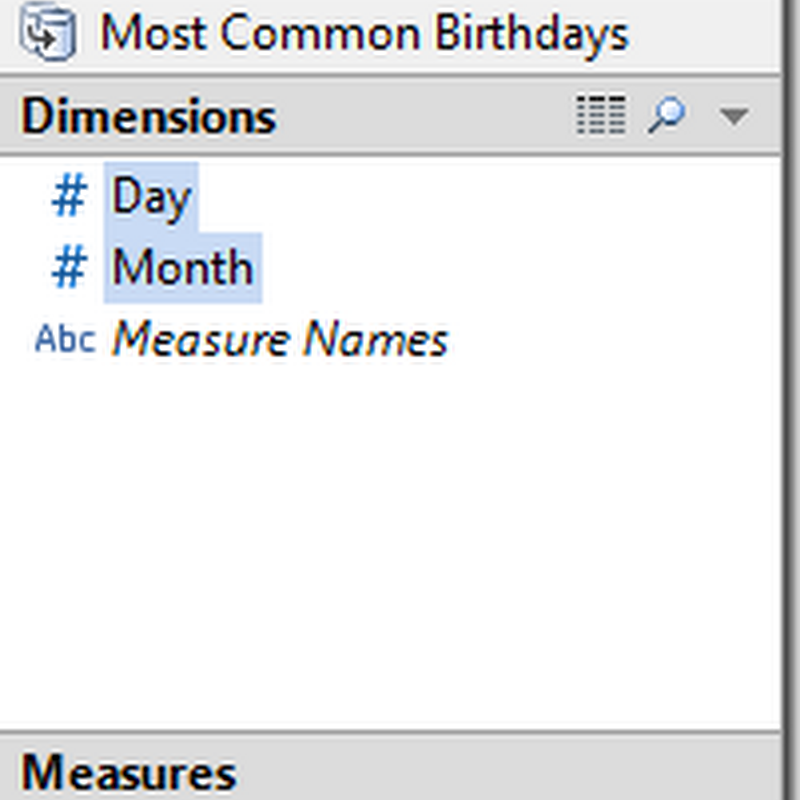

Step 1 – Hold the CTRL key and click the Day, Month and Rank fields (they should all be highlighted after you choose them)
Step 2 – Open the Show Me window on the toolbar and click on the Highlight Table option
You should see the view below with Days in the columns and Months in the rows.
Step 3 – Click on the swap icon to place Day on the row shelf and the Month on the column shelf
Step 4 – Right click on the Month column label and choose Hide Field Labels for Columns
Step 5 – Drag the Rank measure off of the Label shelf
You should now this view.
Step 6 – Double click the color shelf to show the Edit Colors window. Choose Orange from the Pallet list and the Reversed option, then click OK.
You need to choose the reverse option if you want the highest ranking days to be the darkest. You final view should look like this.
That’s it! Six steps, less than 30 seconds, and you have a beautiful heat map.
Give it a shot.
